Pipe Line Components

Home - Industrial Glass Components - Pipe Line Components

Borosilicate glass 3.3 material pipeline components have many advantages for its use in chemical, pharmaceutical industries because of its following properties.

Inert to almost all chemicals, hence there are no any chances of accident and no unwanted flavors or colors are imported into product.

Transparency benefits for visual checking of process, material flow, changing of color.

Corrosion resistance for almost all kind of chemicals.

Non-porous and smooth surface permits easy cleaning and prevents dirtiness.

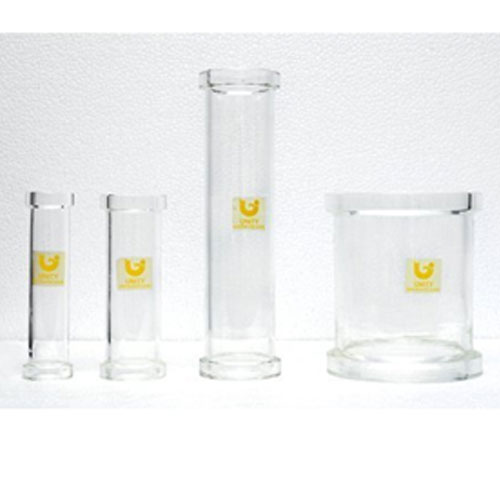

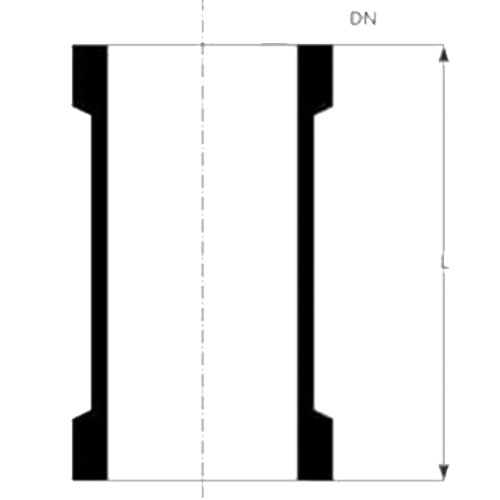

PIPE SECTIONS (PS)



DN L CAT.REF.
25 75 PS 1/75
100 PS 1/100
125 PS 1/125
150 PS 1/150
175 PS 1/175
200 PS 1/200
300 PS 1/300
400 PS 1/400
500 PS 1/500
700 PS 1/700
1000 PS 1/1000
1500 PS 1/1500
40 100 PS 1.5/100
125 PS 1.5/125
150 PS 1.5/150
175 PS 1.5/175
200 PS 1.5/200
300 PS 1.5/300
400 PS 1.5/400
500 PS 1.5/500
700 PS 1.5/700
1000 PS 1.5/1000
1500 PS 1.5/1500
50 100 PS 2/100
125 PS 2/125
150 PS 2/150
175 PS 2/175
200 PS 2/200
300 PS 2/300
400 PS 2/400
500 PS 2/500
700 PS 2/700
1000 PS 2/1000
1500 PS 2/1500
80 100 PS 3/100
125 PS 3/125
150 PS 3/150
175 PS 3/175
200 PS 3/200
300 PS 3/300
400 PS 3/400
500 PS 3/500
700 PS 3/700
1000 PS 3/1000
1500 PS 3/1500
100 150 PS 4/150
175 PS 4/175
200 PS 4/200
300 PS 4/300
400 PS 4/400
500 PS 4/500
700 PS 4/700
1000 PS 4/1000
1500 PS 4/1500
150 150 PS 6/150
175 PS 6/175
200 PS 6/200
300 PS 6/300
400 PS 6/400
500 PS 6/500
700 PS 6/700
1000 PS 6/1000
1500 PS 6/1500
225 300 PS 9/300
500 PS 9/500
700 PS 9/700
1000 PS 9/1000
1500 PS 9/1500
300 300 PS 12/300
500 PS 12/500
700 PS 12/700
1000 PS 12/1000
1500 PS 12/1500

Industrial Glass Componenets

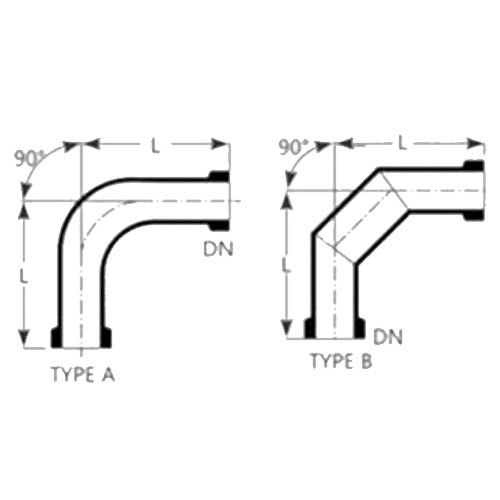

PIPE BEND



DN L TYPE CAT.REF.
25 100 A PB 1/90
40 8150 A PB 2/90
50 8150 A PB 3/90
80 200 B PB 4/90
100 150 B PB 5/90
150 250 B PB 6/90
225 375 B PB 9/90
300 475 B PB 12/90
400 600 B PB 18/90

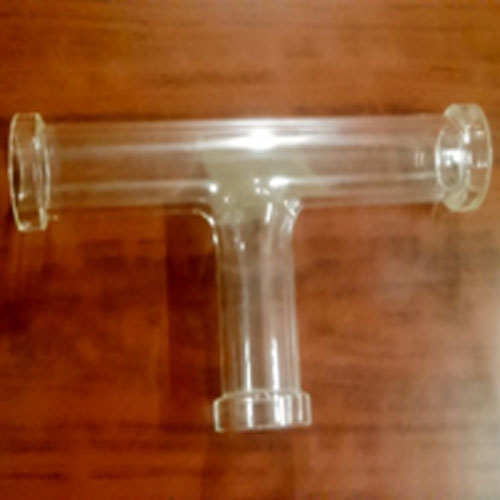

EQUAL TEE



DN L CAT.REF.
25 100 PT 1
40 150 PT1.5
50 150 PT 2

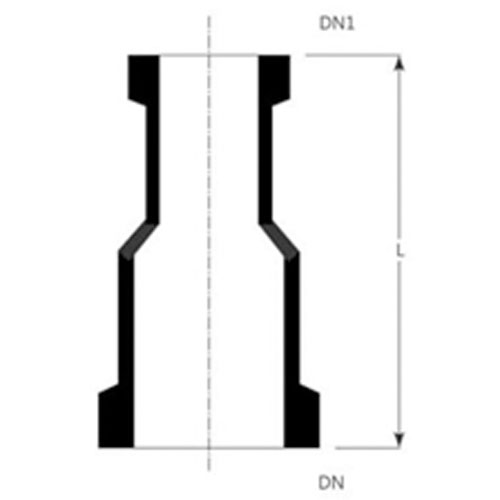

REDUCERS

DN DN1 L CAT.REF.
40 25 100 PR1.5/1
50 25 100 PR2/1
25 100 PR2/1.5
80 25 120 PR3/1
40 125 PR3/1.5
50 125 PR3/2
100 25 125 PR 4/1
40 150 PR 4/1.5
50 150 PR 4/2
80 150 PR4/3
150 25 200 PR 6/1
40 200 PR 6/1.5
50 200 PR 6/2
80 200 PR 6/3
100 200 PR 6/4
225 25 250 PR 9/1
40 250 PR 9/1.5
50 250 PR 9/2
80 250 PR 9/3
100 250 PR 9/4
150 250 PR 9/6
300 25 275 PR 12/1
40 275 PR 12/1.5
50 275 PR 12/2
80 275 PR 12/3
100 275 PR 12/4
150 275 PR 12/6
225 275 PR 12/9

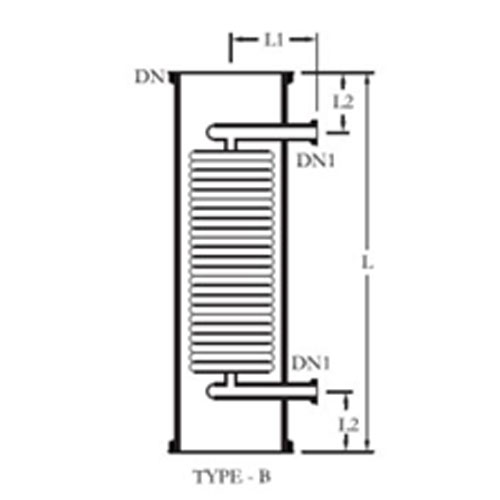

CONDENSERS





CAT.REF HTA (m2) DN DN1 L L1 L2 Type Jacket Cap. Ltr. Coolant Rate Kg/h *FCSA SHELL (cm2)
HE1.5/2 0.20 40 16 600 85 100 A 1 750 4.5
HE2/3.5 0.35 50 16 600 90 100 A 1.25 1300 5
HE3/3.5 0.35 80 16 600 90 100 A 2 1300 5
HE4/5 0.50 100 19 600 120 100 A 4 2400 30
HE4/6 0.60 100 19 750 120 100 A 6 2400 30
HE6/10 1.00 150 25 600 150 100 B 9 2600 52
HE6/15 1.50 150 25 850 150 125 B 11 2600 52
HE9/25 2.50 225 25 800 180 125 B 18 3300 142
HE12/25 2.50 300 25 600 250 125 B 25 5700 175
HE12/25 2.50 300 25 600 250 125 B 25 5700 175
HE12/40 4.00 300 25 900 250 125 B 35 5700 175
HE16/40 4.00 400 25 600 265 125 B 60 6200 450
HE16/50 5.00 400 25 700 265 125 B 60 6200 450
HE18/60 6.00 450 40 750 325 150 B/C 100 4800 820
HE18/80 8.00 450 40 900 325 150 B/C 110 6200 820

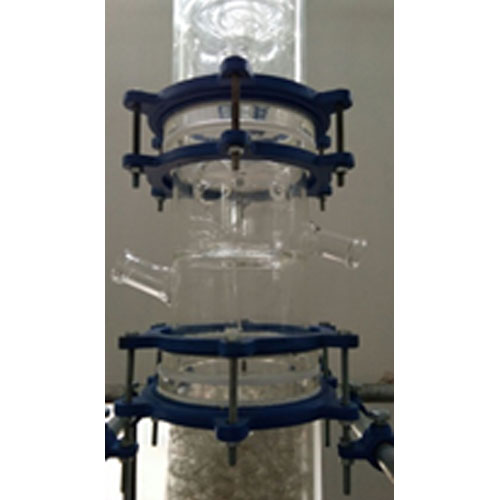

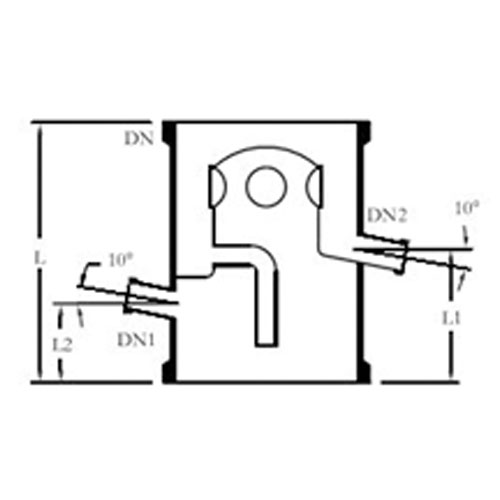

CONDENSERS





CAT.REF. DN DN1 DN2 L L1 L
RDA 3 80 25 25 200 100 85
RDA 4 100 25 25 250 150 95
RDA 6 150 25 25 250 150 100
RDA 9 225 25 25 375 150 115
RDA 12 300 25 25 375 150 115
RDA 16 400 40 40 500 200 150
RDA 18 450 40 40 600 275 150
